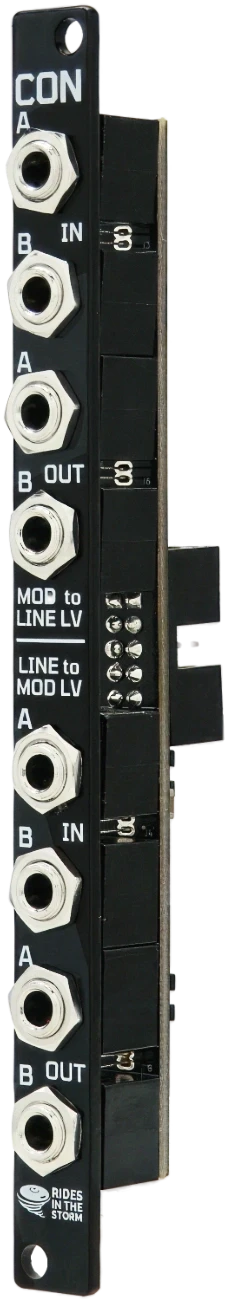

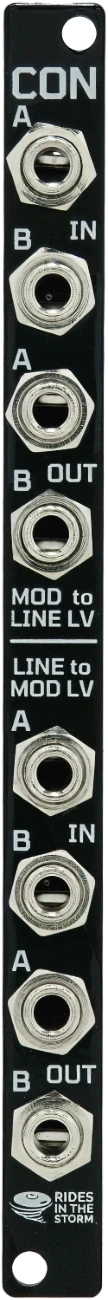

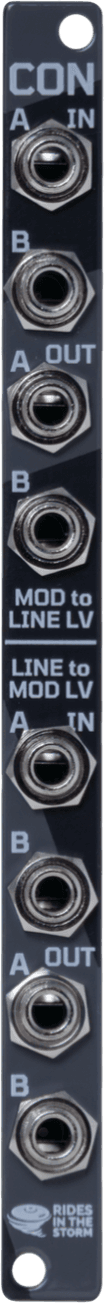

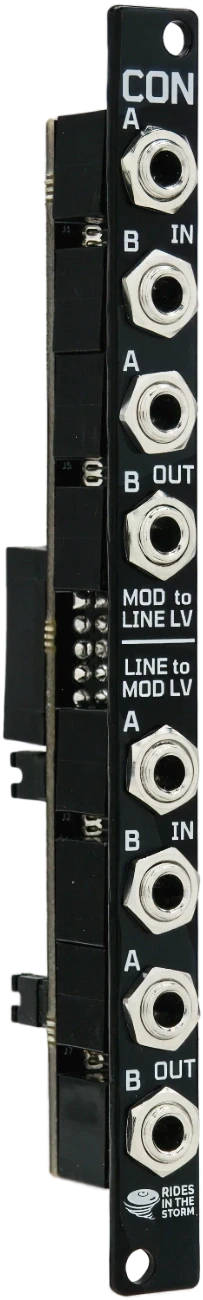

Quad Gain Converter (Normal and High)

• Two channels from line level to modular level and

• two channels from modular level to line level. Very low noise and

• low distortion circuit while preserving the transients.

• Two versions: Normal and High

• gain stage is 5,29 and 14,46 dB for Normal and 11 and +20,8dB for High

• attenuator stage is -4,55 and -13,16 dB for Normal and High

• Normal version is cool for line signals, humbucker guitars, synths with powerful output.

• High version is cool for line signals with volume control, single coil guitars, synths with low output.

Rackspace: 2HP
Power consumption: +/- 10mA
